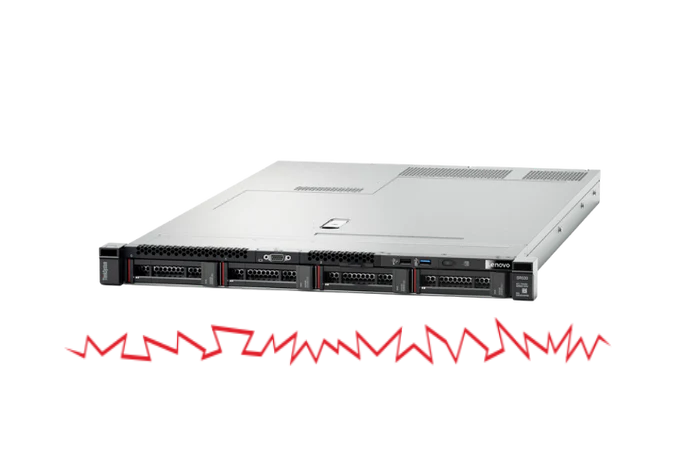

Lenovo ThinkSystem SR530 Rackmount Server

Alta Technologies buys & sells new, used, and refurbished Lenovo ThinkSystem SR530 Servers and upgrades. Whether you need a fully configured server or simply require a feature or part, we specialize in used Lenovo ThinkServer hardware.

We also buy your excess Lenovo server and storage equipment.

Sell to Us Request a Quote

SR530 Information

The Lenovo ThinkSystem SR530 is a 2-socket 1U rack server for small to big businesses that require industry-leading reliability, management, and security, as well as cost-optimized performance and future growth flexibility. It can be the cornerstone of your online business, as it is designed to manage a wide range of tasks such as IT infrastructure, collaboration, and entry cloud. The SR530 server supports up to two processors, up to 768 GB of 2933 MHz TruDDR4 memory, 8x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot and up to 3x PCIe slots.

Request a Quote Today

LENOVO RACKMOUNT SERVER MODELS:

Lenovo SR530 Specifications

Form factor: 1U rack-mount

Chipset: Intel C622

Processor: up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors: up to 22 cores (1.9 GHz core speeds), Up to 3.8 GHz core speeds (4 cores), two UPI links up to 10.4 GT/s each, up to 30.25 MB cache, up to 2933 MHz memory speed

Memory: up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel). Support for RDIMMs and LRDIMMs. Memory types cannot be intermixed. Memory speed up to 2933 MHz depending on the processor selected.

Memory capacity: up to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor)

Network Interfaces: 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support), onboard LOM slot for up to two additional 1/10 Gb Ethernet ports: 2x 1 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE RJ-45 ports (no 10/100 Mb support), 2x 10 GbE SFP+ ports (no 10/100 Mb support)

Ports: front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port, rear: 2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.

Power supply: Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
